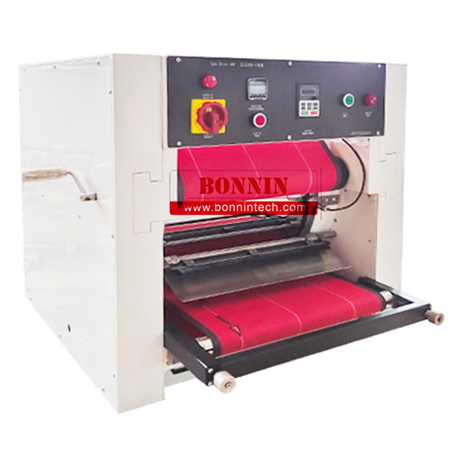

BN-8035 Paper Rotary Dryer is a device specially used for the rapid drying of thin sheet materials such as ordinary paper, synthetic fiber functional paper (aramid paper/PET paper), inorganic fiber composite materials, etc. It completes rapid drying through the rotary structure of the drying cylinder. The cylinder body is made of stainless steel, uses electric heating, and has a dual temperature sensor control system.

This dryer is mainly used for drying thin sheet materials for experimental. The built-in heating device can heat the drum surface to the set temperature, place the sample on the conveying blanket, and the drum rolls up the sample and delivers the dry paper after half a turn. Designed with a very thick drum wall to accumulate heat, which effectively prevents the temperature drop and uneven temperature distribution caused by wet paper.

The rotary dryer is more suitable for enterprise R&D departments or laboratory applications, material R&D laboratories in colleges and universities, scientific research applications in major research institutes, and quality inspections by major quality supervision bureaus and inspection and quarantine bureaus, etc.

Technical indicator

Drum diameter: 400mm

Drum material: 304 stainless steel

Drum surface treatment: fine grinding mirror treatment

Drum width: 400mm

Heating temperature: room temperature ~ 160°C infinitely adjustable

Temperature difference uniformity: temperature uniformity control 0-8°C

Conveying speed: 10-200mm/min infinitely adjustable

 Paper removal pressure: mechanical pressure, screen bottom roller can be fast

Felt cloth fastening: polyester mesh cloth is adjusted to different tightness through the fastening adjustment roller (high temperature resistant polyester)

Temperature control: Omron drying temperature control system

Power requirements: 220V/50Hz; 3500W

Equipment size: 730*720*910mm
