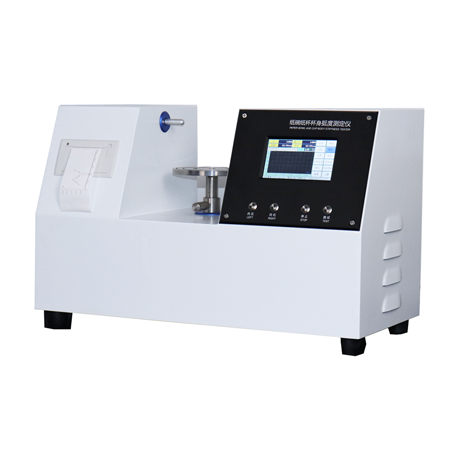

BN-8026C Automatic Paper Cup Stiffness Tester is a testing tool of paper cup paper bowl production and production enterprise and carton use enterprise control quality, mainly used to test the paper cup paper cup body stiffness tester, put the sample cup in the stiffness tester.
Applications:
BN-8026C Automatic Paper Cup Stiffness Tester is a testing tool of paper cup paper bowl production and production enterprise and carton use enterprise control quality, mainly used to test the paper cup paper cup body stiffness tester, put the sample cup in the stiffness tester. On the movable gantry, the sensor probe is just perpendicular to the side wall of the cup, and the movable gantry is adjusted so that the vertical distance between the probe and the bottom of the cup is about two-thirds of the height of the cup. The instrument automatically records the stiffness value after moving a certain distance forward.
Features:
★ Large touch screen display, can be operated separately by computer and stiffness meter, one button to complete;
★ Fully automatic electronic test equipment, easy to use, wider test range;
★ One-click operation of the experimental process to avoid human error;
★Microcomputer and computer system automatically judge the initial test status;
★ equipped with a micro printer for quick and easy data output, or with a separate printer print graph and data;
★Double-head paper cup body stiffness test structure design, test data is more accurate;
Technical parameters:
Measurement range | (0-20)N, resolution 0.01N |
Display value accuracy indication error | ±1% indication variability ≤1% |
Measurable paper cup diameter | 20-150mm |
Paper cup height | 15≤L≤120 |
Test speed | 50±2.5mm/min (1-200 continuously adjustable) |
Force distance | 9.5±0.5mm |
Dimensions | 630mmX320mmX400mm |
Modular integrated thermal printer | |
Weight | 38 kg |
