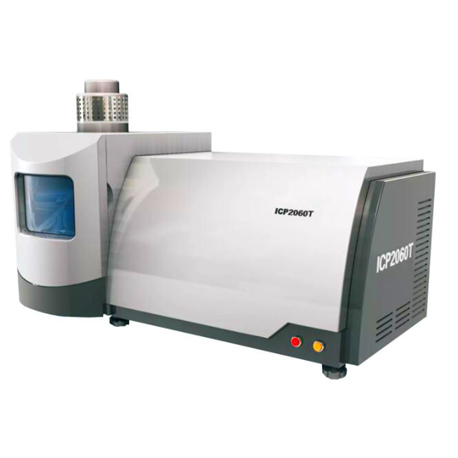

ICP 2060T Sequential Inductively Coupled Plasma Emission Spectrometer is designed to measure major, minor and trace elements in various samples with excellent analytical precision and accuracy. ICP2060 has wide wavelength range of 190nm to 800nm with 2400 line grating.
ICP 2060T Sequential Inductively Coupled Plasma Emission Spectrometer is designed to measure major, minor and trace elements in various samples with excellent analytical precision and accuracy. ICP2060 has wide wavelength range of 190nm to 800nm with 2400 line grating. The instrument feature high optical resolution, full automation, Solid State RF system as well as powerful analysis software with auto-matching.
| Resolution: 0.015nm (3600 line grating); 0.030nm (2400 line grating) | Spray chamber: Scott double pass spray chamber |
| Focal length: 1000mm | Output power: 800W -1600W, adjustable with power efficiency more than 65% |
| Grating specifications: holographic grating with 3600E/mil or 2400 L/mil, 80 mmx100mm of ruling area | Output power stability: 00.05% |
| Wavelength range: 195-500 nm for 3600 line grating, 195-800 nm for 2400 line grating | > Induction coil: 25mmx3 ID(ID-internal diameter), equipped with three concentric quartz torch tubes 35mm ED (ED-external diameter) |
| Control Circuit | Other Specifications |
| Photomultiplier tube specification:R212/R928 | Repeatability: short-term stability- RSD 1.5% |
| Negative high voltage: -50 – -1000 V | Long-term stability:RSD 2% |
| Circuit measuring range: (101′ – 101A | Test speed:5-8 elements/min |
| Signal acquisition: VF conversion | Limits of detection (LOD, pg/L) for most elements: 1ppb-10ppb |
