Applications：

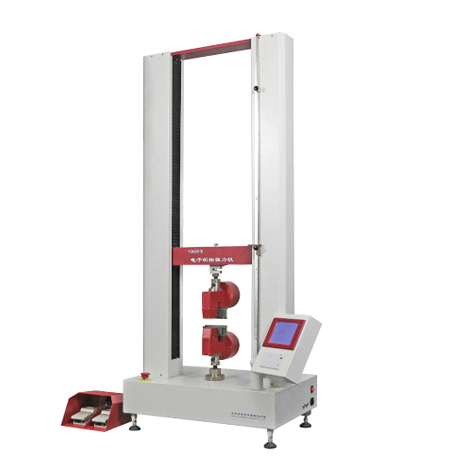

YG026HB Electronic Universal Tensile Testing Machine is used for analysis of mechanical properties such as tensile, tearing, bursting, peeling, constant elongation, constant load, elasticity, suture slippage, modulus, etc. of various textiles and rubber, shoe materials, leather, metals, building materials, etc. test. This equipment is the model with high precision, complete functions, stable performance and high cost performance among the current domestic mechanical performance testing instruments.

Instrument characteristics：

1. Constant rate elongation (CRE) principle, microcomputer control, 5.7-inch touch screen control, built-in printer, and online communication support.
2. Double-column gantry support structure, multi-functional pneumatic gripper, easy and quick to replace.
3. The transmission system adopts AC servo drive system, reducer, synchronous pulley, and screw assembly. The beam of the instrument moves smoothly, with low noise and high elongation precision.
4. High-precision sensor, tensile and burst tests do not need to replace the sensor.
5. Various standard test functions can be provided according to customer needs, and can also be customized according to customer requirements.
6. The instrument adopts a variety of protection measures: upper and lower limit protection devices for beams; anti-collision protection devices for fixtures; software protection for setting displacement and load limits; sensor overload protection; sample load software protection; overcurrent, overvoltage and other protections. And monitor the main components in real time. Therefore, the use of the instrument is safer and more reliable.
7. The clamping distance of the instrument is digitally set and automatically positioned.
8. The instrument can be used online with professional testing software for strength testers. The software has the functions of manipulating the instrument; drawing test curves; analyzing, saving and managing test data; building and printing test reports.

Test parameters：

1. Measuring range: 500N, 1000N, 2500N, 5000N, 10000N
2. Accuracy of force sensor: ≤±0.2%F·S
3. Sampling frequency: higher than 1000 times/second
4. Effective stroke: 800mm
5. Elongation resolution: 0.01mm
6. Clamping distance: 10-800mm
7. Speed range: 0.01～500mm/min, digital setting
8. Test unit: free conversion of N, cN, kgf, lb, etc.
9. Gantry width: 400mm
10. Power supply: AC220V±10% 50Hz 500W
11. Dimensions: 665×450×1640mm
12. Weight: 175kg
