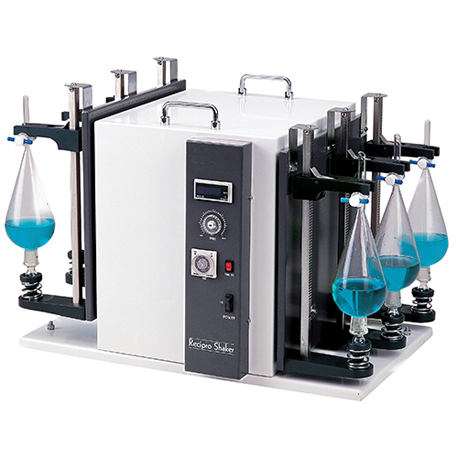

LZ-8D separatory funnel oscillator shaker (also name of separator flask shaker) is also called an automatic liquid-liquid extraction device. The machine adopts a microcomputer timing speed regulation system and a DC motor as the driving source. It has constant and adjustable speed, digital display, convenient operation, orbital operation mode, operation Stable and other characteristics, widely used in scientific research, teaching and production departments such as biological products, genetics, viruses, medicine, environmental protection, etc. It is one of the commonly used experimental equipment in laboratories

Product Usage:

1. Extraction of formaldehyde content in cosmetics
2. Extraction of vitamins
3. Extraction operation before environmental analysis
4. Extraction of natural foods and oils
5. Extraction of pesticide residues
6. Extraction of harmful substances in soil
7. Extraction of water pollution detection

Product features:

• Using high-power DC motor, large LCD screen display, clear and intuitive, microcomputer speed control system, stable oscillation speed.
• Separating funnel oscillator can choose two oscillation modes, inclined oscillation and vertical oscillation, to obtain greater mixing force.
• Digital display of oscillation frequency, after power on, the number of oscillations before power off last time can be displayed. You can switch between timing oscillation and continuous oscillation.
• The oscillation frequency is continuously variable, the oscillation frequency can reach 20~250 times/min when tilted, and the oscillation frequency can reach 20~300 times/min when vertical.
• Oscillation angle can be freely adjusted within the range of 0-20° according to user requirements.
• Start buffer and stop buffer technology, start and stop slowly, reduce the impact on the separatory funnel.
• When the separatory funnel oscillator is oscillating, the running sound is below 55 decibels, no noise, and very quiet.
• Using a DC motor can maintain a stable oscillation frequency for a long time.
• The instrument adopts a spring pull design, it is very convenient to install or remove the separatory funnel, and it can clamp the separatory funnel of different capacity at the same time.
• The instrument adopts a weighted base design, and it runs smoothly during high-speed oscillation without displacement.

Technical Parameters:

1. Model: LZ-8D
2. Oscillation mode: vertical or inclined oscillation
3. Tilt angle: 0～20°adjustable
4. Oscillation speed: starting ~ 300 times/min
5. Oscillation amplitude: 40mm
6. Frequency Control Infinitely variable speed, LCD display
7. Time Set Range 0-99 Hours ( count down applied )
8. Applied Vessel 50–2000ml standard pyriform or ball type separating funnel
9. Vessel Number 4 / 6 / 8 / 10pcs
10. Work load: ≤10kg
11. Power of the whole machine: 200W
12. Power supply voltage: 220V, 50HZ

Standard configuration:

Oscillator host: 1 set, standard fixtures: within 8 (250ml~2000ml); other fixture specifications can be customized.
