Macro titration, Micro titration
Volume setting titration, End point titration, stored titration

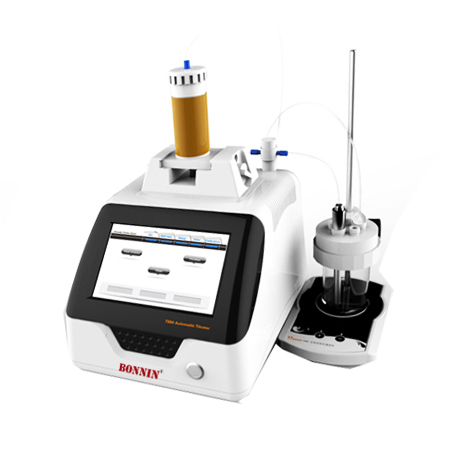

BN-PT860 Automatic Potentiometric Titrator have titration models including “Macro titration”, “Micro titration”, “Volume setting titration”, “End point titration” and “stored titration”.
Titration analysis including “acid-base titration”, “oxidation-reduction titration”, precipitation titration”, “complexometry” and “nonaqueous titration”.
Technical Specifications
| Testing model | Macro titration Micro titration Volume setting titration End point titration stored titration |
| Analysis | acid-base titration oxidation-reduction titration precipitation titration complexometry nonaqueous titration |
| Automatic burette | 2(15mL, 25mL) |
| Stir | Magnetism stir |
| Titration cup | 100mL |
| Electrode port types | mv/pH 1, reference electrode 1, PT1000 electrode 1 |
| Standard electrodes for T860 | Temperature compensated electrode, 232 saturated calomel electrode, 213Q9 platinum electrode, 6503 pH combined electrode, 216Q9 silver electrode, 217 Double salt bridge saturated calomel, 231Q9 pH glass electrode. |
| Communication port | USB, Stir port, power port, printer port. |
| Learn titration | YES, methods can be edited and stored |
| Weight net | 10kg |
| mV/pH potential electrode interface | measuring range | -1999. 0 – 1999.0mV |
| 0.00 – 14.00 pH | ||
| resolution | 0.1mV 0.01pH | |
| accuracy | 0.2mV 0.02pH | |
| PT 100 temp. electrode interface | Measuring range | 0 – 100℃ |
| resolution | 0.1℃ | |
| accuracy | 0.2℃ | |
| Burette driver | 15mL accuracy | ±0.025mL |
| 25mL accuracy | 0.035mL | |
| titration analysis parallelism | 0.2% | |
| millivolt accuracy | ≤0.2mV | |
| Control terminal | touch Screen | 7inch TFT color touch screen |
| Power | supply | 110 – 240V, 50/60Hz |
