Product Description

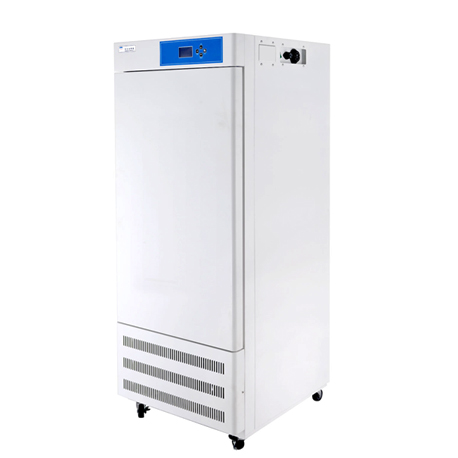

Biochemistry incubator cooling incubator HPX-L HPX-A HPX-B

Application range

The biochemistry incubator is applied to storage medium, serum, medicine and low temperature environmental test.

Features:

  • Outer Shell Material: Cold-rolled steel sheet surface spray

Inner Material: SUS304 Stainless steel

  • Inner fans to make circular air convection for an even environment
  • Microprocessor PID temperature control, accurate and reliable

Parameters auto saving system and automatic start after power interruption

  • Inner round cornered design, convenient to clean
  • Shelves adjusted easily and flexible
  • Castors for easy movement
  • France Tecumseh refrigeration compressor, effective and energy saving; Freon-free environment friendly refrigerator
  • Optional device:

Independent external temperature protection device

Independent external temperature protection alarm module by SMS( not inculding the data flow card) which can be inquired by mobile APP

Test orifice φ 35mm

RS485 Communication serial port

RS485 to USB Transfer interface

Micro pinhole printer;Micro thermal printer



Technical data:

ModelHPX-L-80HPX-L-150HPX-L-200HPX-L-250HPX-L-300HPX-L-400
Temperature Control Range-10℃-65℃
Temperature Uniformity±2℃
Temperature Fluctuation±0.5℃-±1℃
Inner Cyclic ModeBreeze stirring method
Temperature Display Accuracy0.1℃
Temperature Control Accuracy±0.1℃
Alarm TypeOver temperature alarm and Temperature probe damage alarm
Temperature ControllerLCD display and P.I.D. temperature controller
Work Room Dimension

WxDxH (cm)

40x37x5545x42x8545x45x10048x49x10752x50x11758x54x127
Capacity(L)81160202251304397
Outline Dimension

WxDxH (cm)

54x57x10760x67x14759x64x15262x68x15966x69x16972x74x179
Shelves233333
Rated Power (W)6507107608109601280
Power1Φ 220V 50Hz



ModelHPX-A-150

HPX-B-150

HPX-A-250

HPX-B-250

HPX-A-300

HPX-B-300

HPX-A-400

HPX-B-400

Temperature Control RangeHPX-A: -20℃-65℃; HPX-B: -40℃-65℃
Temperature Uniformity±2℃
Temperature Fluctuation±0.5℃-±1℃
Inner Cyclic ModeBreeze stirring method
Temperature Display Accuracy0.1℃
Temperature Control Accuracy±0.1℃
Alarm TypeOver temperature alarm and Temperature probe damage alarm
Temperature ControllerLCD display and P.I.D. temperature controller
Operation Mode24-process by program or value
Work Room Dimension

WxDxH (cm)

42x42x9347x46x11849×47.5×12856x60x120
Capacity(L)164255298403
Outline Dimension

WxDxH (cm)

61.5×72.5×15766.5×76.5×18268.5x78x19275.5×90.5×184
Shelves3333
Rated Power (W)2625262526252625
Power1Φ 220V 50Hz



Enquiry For Low Temperature Biochemistry incubator
