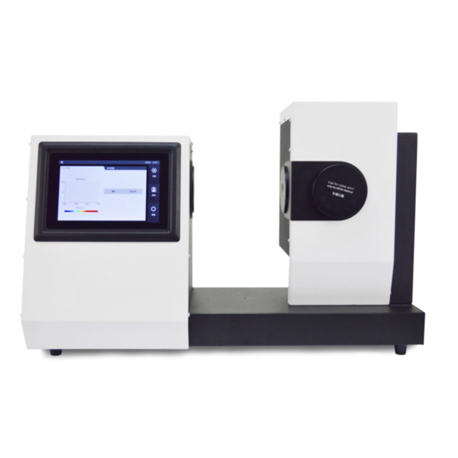

CS-700 Digital Color Haze (Gloss) Meter is designed for color, haze, spectral transmittance and total transmittance measurement of transparent and translucent materials such as plastic sheets, films, glass, LCD panel and touch screen, etc.
Application:
CS-700 Digital Color Haze (Gloss) Meter is designed for color, haze, spectral transmittance and total transmittance measurement of transparent and translucent materials such as plastic sheets, films, glass, LCD panel and touch screen, etc.
Instrument Introduction
Color and haze meter CS-700 has comprehensive color parameters, which can measure dozens of color parameters such as Lab, yellowness index, whiteness index, Gardner, Pt-Co / APHA / Hazen colors.
The clarity and haze meter CS-700 complies with both ASTM and ISO measurement standards. It can meet the following measurement standards ASTM D1003 / D1044, ISO13468 / ISO14782, JIS K7105, JIS K7361, JIS K7163 and other international standards.
Color and haze meter CS-700 provides A, C and D65 measurement light source selection, and 24 types of measurement light source for color measurement.
It can realize the compensation measurement of transmittance and provide more accurate transmittance test results.
Provide powerful haze, color, and transmittance measurement and analysis software, which can operate on a computer to generate and print test reports.
Android operate system and touch screen for more convenient operation and better user experience.
Open sample measurement area, which is no limit on sample size, you can perform horizontal or vertical measurement according to different samples.
Meet the measurement needs of different forms of sheet and liquid samples
Soft and Tough Film Fixture Liquid Fixture
Technical parameters:
| Model | Color Haze Meter CS-700 |
| Light source | Haze/Transmittance: CIE-A, CIE-C, CIE-D65
Chromaticity index: A, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CMF, U30, DLF, NBF, TL83, TL84 |
| Test standard | ASTM D1003/D1044, ISO13468/ISO14782, JIS K 7105, JIS K 7361, JIS K 7136, GB/T 2410-08, CIE ****5, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c standard |
| Measurement parameters | Haze (HAZE), transmittance (T), spectral transmittance,
CIE Lab,LCh,CIE Luv,XYZ,Yxy, , Hunter Lab MunsellMI,CMYK, Whiteness WI (ASTM E313-00, ASTM E313-73, CIE/ISO, Hunter, Taube Berger Stensby), Yellowness YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), Metamerism Index Milm, APHA, Pt-Co (platinum cobalt index), Gardner (Gardner index), color difference (ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1) ,ΔE*94,ΔE*00) |
| Spectral response | CIE spectral function Y/V(λ) |
| Wavelength range | 400-700nm |
| Wavelength interval | 10nm |
| Optical path structure | 0/d |
| Illumination and Sample Aperture Size | 16.5mm/21mm |
| Range | 0-100% |
| Resolution | 0.01 unit |
| Repeatability | Haze < 10%, repeatability ≤ 0.05%; haze ≥ 10%, repeatability ≤ 0.1%; transmittance ≤ 0.1% |
| Sample size | Thickness≤145mm |
| Display | 7 inch capacitive touch screen |
| Storing data | 20000 values |
| interface | USB interface |
| power supply | 220V (with power cord) |
| Operating temperature | 0~45°C, relative humidity 80% or lower (at 35°C), no moisture condensation |
| Stored temperature | -25°C~55°C, relative humidity 80% or lower (at 35°C), no moisture condensation |
| Volume (length X width X height) | 598mmX247mmX366mm |
| Standard | PC management software (Haze QC) |
| Optional | Measuring fixture, haze standard sheet, 5mm/7mm/10mm diameter plate, 40*10 cuvette |
