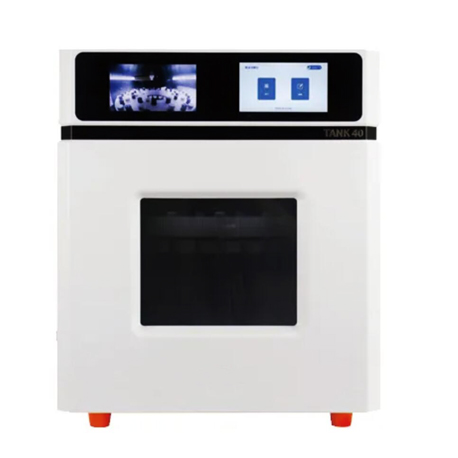

TANK-40 microwave digestion system is capable of digesting a wide range of samples, including organic and inorganic materials, with precise control over temperature and pressure. Trust the TANK-40 to streamline your sample preparation process and enhance productivity.
TANK-40 microwave digestion system is a cutting-edge solution for rapid and efficient sample preparation in various industries. With its advanced technology and user-friendly design, it offers unparalleled performance and reliability. This system is capable of digesting a wide range of samples, including organic and inorganic materials, with precise control over temperature and pressure. Trust the TANK-40 to streamline your sample preparation process and enhance productivity.
Characteristics:
The furnace cavity is made of Grade 316L stainless steel, The 3D adjustable, explosion-proof security door, installed with buffer and choke (to prevent microwave leakage), is self-sealing, impact-resistant and with interlocking linkage mechanism. The aerospace composite fiber outer vessel, wholly sprayed with PFA coating, boasts both higher anti-corrosion and higher pressure-resistance levels, compared to those of PEEK materials. The 70MPa pressure-resistance and the 600°C heat-resistance capabilities guarantee the safe operation of users under extreme conditions.
TANK 40 Microwave Digestion Workstation adopts dual magne- tron inverter control system and high-frequency closed-loop PID control, thereby realizing microwave continuous non-pulse output, more uniform microwave field in the cavity, higher energy utilization rate, and consistent sample digestion.
The 7-inch color LCD touch screen displays real-time data, such as temperature, pressure, time, and steps. Swift switch to display of coordinate curves greatly facilitates users to better know what is going on with the experiment. The 5-inch color LCD screen allows clear, real-time observation of operation inside the furnace cavity. Equipped with interfaces, such as USB, network port or Wi-Fi, the vessel, once permitted, can be remotely operated and monitored through computer.
The high-pressure digestion vessel adopts the safety bolt struc- ture; while the auto-release vessel uses the elastic pressure relief and self-sealing technology. Under normal operation con- ditions, the vessels are completely sealed without leakage. Under overpressure conditions, Both paths will trigger a pressure release to ensure a passive pressure protection.
Non-contact mid-infrared sensors at bottom monitor and visual- ize real-time temperature change of sample solution inside each digestion vessel. The whole vessel temperature control system effectively monitors abnormal conditions during digestion exper- iment. Once abnormal temperature is detected, the vessel immediately stops microwave emission and starts to sound the alarm, so that experimental safety is not disturbed.
The vessel, running on the Android operating system, is conve- nient and multi-functional. It offers many functions, such aselectronic signature, hierarchical permission and audit trail, all in conformity with relevant regulations of FDA21CFRPart11. The software automatically identifies model of the turntable and automatically counts the number of vessels, making the experi- ment easier and faster, with the absence of tedious manual counting and input.
Various tools are supplied to reduce workload for operators and improve the work efficiency of sample preparation. Forexample, a mobile and flexible tool trolley is able to transfer rotor loaded with sample into and out of furnace cavity, avoiding direct contact between operator and digestion vessel for safety concerns.
Specification
TANK40 Microwave Digestion Workstation Parameters:
|
Power |
220~240VAC50/60Hz20A |
|
Working environment temperature |
0~40℃ |
|
Relative humidity for working environment |
15~80%RH |
|
Microwave source |
2450MHz; Maximun microwave output power 2000W, emitted from Dual magnetron inverter high-energy microwave field; non-pulse continuous microwave output |
|
Installed power |
3800W |
|
Microwave cavity |
Grade 316L stainless steel microwave resonant cavity, with a wall thickness of more than 3mm, sprayed with multi-layer PFA coating |
|
Furnace exhaust system |
Automatically adjusted air volume; cooling to room temperature in less than 15 minutes |
|
Software system |
Android operating system (8G memory), built-in video SOP, application method library, electronic door lock, etc. |
|
Overall physical size/net weight |
600×685×660 (W*D*H)62kg |
|
Batch amount |
40vessels |
|
Inner vessel material |
TFM |
|
Outer vessel material |
Aerospace composite fiber with TEFLON coating |
|
Inner vessel volume |
55mL |
|
Maximum temperature |
300℃ |
|
Maximum pressure |
15Mpa |
|
