Product Description


1,7″ TFT color touch screen, real-tine graphical display.
2, Outstanding block Temp. uniformity, always obtains best PCR result.
3. Effortlessly Interchangeable modules no tools required.
4, 10,000 on board protocol storage and unlimited storage with flash drive.
5. Gradient and non-gradient functions are optional and cost-effective.
6. Beautiful and Streamlined appearance, lightweight structure.

Technical data:

ModelGTC-A100(Non-gradient)GTC-A200(Gradient type)
Optional Module96 Module:96wells×0.2ml


Multi-purpose Module:9677Module+In-site Adapter


Heating&Cooling TechnologyNew generation Peltier technology allow 1,000,000 cycles
Display7’’Color Touch Screen, real-time graphical display
USB flash drive FunctionUnlimited storage of protocols with USB flash drive
Communication Ports2 USB&1 LAN
Venting SystemFront air in &back air out, two thermal cyclers can be placed side by side
Block Temp. Range0℃-105℃
Max.Heating Rate5℃/s
Max.Cooling Rate5℃/s
Display Resolution0.1℃
Ramping Rate Adjustable0.1-4.0℃
Mode Of Temp.ControlSim-tube& Block mode
Gradient Accuracy/≤±0.1℃
Column Uniformity/≤±0.2℃
Gradient Range/30℃-99.9℃
Temp. Differential Range/Max.30℃
Gradient Capability/12Column
Height Of Heat LidSteplessly adjustable lid, accommodates PCR tubes, strips &plates
Lid FeatureInnovative “TOP-OPEN“technology, protection from over-pressure
Heat Lid Temp. Range30℃-112℃
Auto Shut-offLid will shut off automatically when the block Temp. falls below set Temp
Max .Number Of ProgramsMax.10, 000 programs onboard, unlimited storage of protocols with USB flash drive
Max .Step30 Steps, multiple nesting cycles available
Max Cycle10000
Time .Increment/decrement1-120 sec, available for Long PCR
Temp. Increment/decrement0.1-10.0℃, available for Touchdown PCR
Auto Pause/ Auto RestartYes
Multi-user Log InWith Password-based authentication to protect personal protocols
Tm CalculatorAutomatically calculates the melting &annealing Temp. with two primer sequences
Low Temp.sample storageyes
Program WizardPre-program templete make the editing very easy through modify several parameters.
Running ReportProvide detailed reports of previously run protocols
Pc ConnectionRemote PC control to manage multiple units across the LAN network
PowerGlobal switch power supply:85V-265V,50-60Hz
Net Weight7.3KG

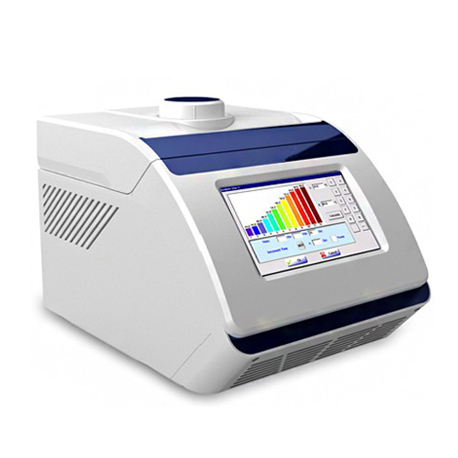

Enquiry For GTC-A200 Gradient Thermal Cycler
