Product Description

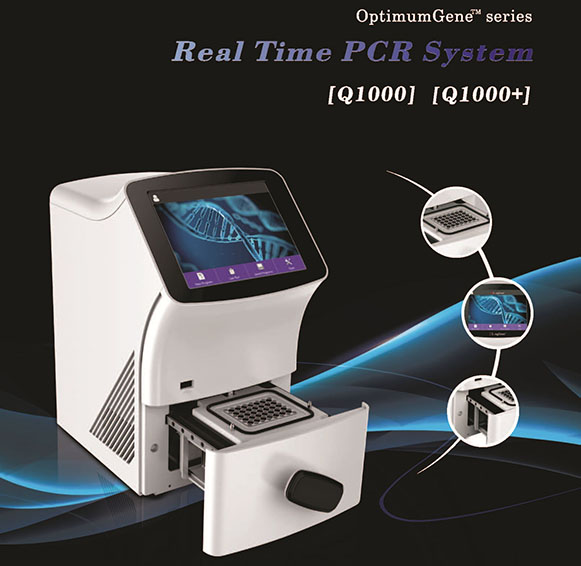

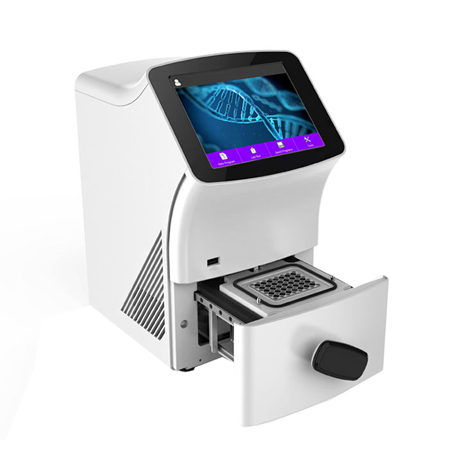

Q1000+ Real Time PCR

ModelQ1000+
PERFORMANCE
Sample Block Capacity48 wells *0.1ml
Reaction Volume10-50ul
Tubes OptionLow-profile white or clear 0.1 ml PCR tube/8-tube strips with optical flat cap
Healing &Cooling TechnologyNew generation Peltier technology allow 1.000.000 cycles
Control MethodsOperate via PC control or Iimited function on instrument
LanguageEnglish
Communication PortsUSE 2.0& LAN
Display7”Color TFT Touch Screen
TEMPERATURE
Block Temp.Range0℃—105℃
Max.Heating Rate7℃/sec
Max.Cooling Rate5℃/sec
Temp.Uniformity±0.2℃at 90℃
Temp.Accuracy±0.1℃(10 seconds after reach 90℃)
Display Resolution0.1℃
Heat Lid Temp.Range30℃—112℃
Temp.Control ModeBlock & Sim-tube mode
Gradient Range30℃-100℃
Temp.Differential Range1℃-24℃
OPTICAL MODULE
ExcitationLong life LED
DetectionHigh sensitivity photoelectric detector
Dynamic Range1—10¹º
Detection Sensitivity≥1 copy
Calibrated Dyes at InstallationChannel 1:FAM、SYBR;

Channel 2:VIC、HEX、TET、JOE、CY3、TAMARA、NED;Channel 3:ROX、TEXAS-RED;

Channel 4:CY5

Fluorescence Excitation Range300-800nm
Fluorescence Detection Range500-800nm
Date Export FormatsExcel. TXT
OTHER FEATURES
PowerGlobal switch power supply:100V-240V,50-60Hz
Consumption400W
Net Weight8.2kg
Dimensions(L×W×H)320×205×380mm
COMPUTER
Operating Systems

Windows7、Windows10、WindowsXP



Enquiry For Q1000+ Real time PCR Sytem
