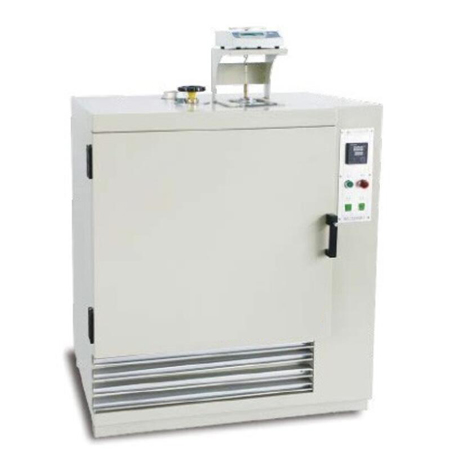

YG747 Ventilated Fast Eight-Basket Constant Temperature Oven (Air Ventilated Eight-Basket Rapid Drying Oven) is a standard oven for the determination of moisture content and moisture regain of various textile materials and products.

Instrument characteristics:

1. Adopt microcomputer temperature control, with PID self-tuning function, which can effectively prevent temperature overshoot. Has good temperature uniformity.
2. Using microelectronic semiconductor heating technology, it has the advantages of small thermal inertia, no open flame, and long service life.
3. The well-designed centrifugal negative pressure exhaust system not only achieves the purpose of quick dehumidification, but also ensures that the fibers do not lose.
4. The main control executive circuit adopts Siemens AC contactor, which has stable and reliable performance, and has multiple safety protection functions, such as motor over-current protection and over-temperature protection, to ensure safe and reliable operation of the equipment.
5. Fast, efficient and energy-saving, which shortens the test time. Generally, textile materials are dried within 40mm. Save about 60% of electric energy.

Test standard:

GB/T5883; GB/T9995; FZ/T01033; FZ/T20002

Technical Parameters:

1. Number of drying baskets: eight baskets
2. Drying time: <40min (cotton)
3. Temperature range: room temperature-150℃ LED
4. Control accuracy: ±1°C
5. Temperature uniformity: ±2°C
6. Air exchange rate: greater than 1/4 of the oven volume per minute
7. Ventilation form: forced hot air convection
8. Wind speed close to the sample: > 0.5m/s
9. Balance weighing: 500g, 0.01g
10. Dimensions: 990×870×1150mm
11. Power supply: AC380V, 2.75KW
