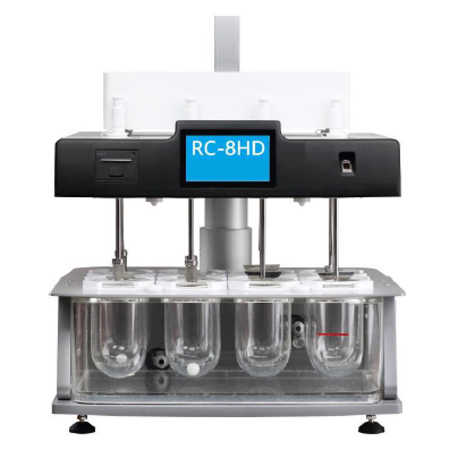

RC-8MD, RC-8HD smart dissolution tester is a new dissolution apparatus jointly developed by domestic colleges. Each series of dissolution testers has two models of 8 cups (including 4 refill cups), which are fully compliant with the Chinese Pharmacopoeia and generic drugs. The requirements for consistency evaluation of quality and efficacy, and the technical indicators have reached the international advanced level! M is the “Middle” mid-range model, and H is the “High” high-end model, both of which meet the consistency evaluation!

Performance characteristics:

 Automatic height-fixing clutch (interchangeable in various methods).

 Fully adjustable cup holder.

 The machine head can be lifted and lowered electrically.

 Brushless DC water pump, low noise and long life.

Authority management system.

 Audit trail function.

 Equipped with a micro printer for on-site printing.

 Bamboo lifting column, combined with double cone positioning, has low noise and accurate positioning.

 Equipped with capacitive fingerprint recognition system, which has fast recognition speed and high accuracy.

 Configurable LAN, WiFi, Bluetooth, RS232, RS485 and other interfaces.

Technical parameters:

 Number of devices: 8 cups

 Applicable methods: basket method, paddle method, small cup method, dish method (large and small dishes), rotating drum method (long and short rotating drum).

 Stirring system:

Area: Single area, single control

Range: 25RPM-250RPM.

Direction: clockwise, counterclockwise.

Resolution: 0.1RPM.

Accuracy: ±4%.

Swing amount: ≤1mm.

 Circulatory system:

Area: Single area, single control

Range: room temperature-45℃.

Resolution: 0.01℃.

Accuracy: 37℃±0.3℃.

 Drug delivery system:

Dosing power: electric, automatic.

Dosing method: horizontal plate. (RC-8HD dosing power: electric, automatic; independent 8 channels. Dosing method: downward flip.)

Dosing mode: simultaneous dosing, sequential dosing.

Sequential dosing and stirring pause function: optional.

 Lighting system: white light, red light, three-level PWM dimming lighting.

 Lifting system: Bamboo type single column lifting + double cone positioning.

 Permission management: three levels, seven users.

 Audit trail: 128 items × 366 days.

 Login method: username + password, fingerprint.

 Online printing: supported.

 Power supply: 220V, 50Hz
