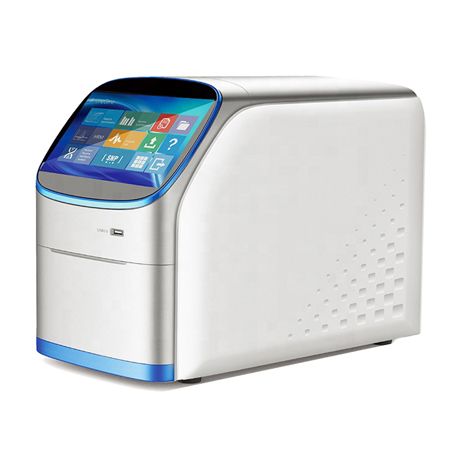

QuantGene 9600 Powerful Real time PCR Detection System Fluorescence Quantitative Real time PCR System, based on the consistent superior quality of LineGene family, QuantGene 9600 has adopted mature thermoelectric refrigeration technology, brand-new light source and light path design.
QuantGene 9600 Powerful Real time PCR Detection System Fluorescence Quantitative Real time PCR System, based on the consistent superior quality of LineGene family, QuantGene 9600 has adopted mature thermoelectric refrigeration technology, brand-new light source and light path design. The unique constant-current power and 6-zone independent temperature control method ensure more rapid, correct and stable fluorescence quantitative analysis of the product, while maintaining its excellent performance in low energy consumption.
The product is modularized with various configurations to choose from. Meanwhile, it has been added with functions including independent temperature control, low temperature storage of sample at 4℃, and automatic dehumidification.
Compared with last generation equipment, it will comprehensively realized automatic gain setting and improve user experience. In the meantime, system customization is available for satisfying requirements of various clients. Thus, it will fully meet the demand of scientific research and clinical diagnosis.
Technical parameters:
|
Product name
|
QuantGene 9600 Fluorescence Quantitative PCR Detection System
|
|||||
|
Product model
|
FDQ-96C
|
|||||
|
Sample capacity
|
0.2ml single tube (with transparent cap), 96×0.2(0.1) ml PCR plate (with transparent cap) 8-strip tube (with transparent caps)
|
|||||
|
Sample volume
|
1-100 μL (10-100 μL recommended)
|
|||||
|
Dynamic range
|
1~10(10)
|
|||||
|
Detection path
|
F1
|
F2
|
F3
|
F4
|
F5
|
F6
|
|
Suitable probe/dye
|
FAM,SYBR Green
|
HEX/VIC/TET/JOE/CY3
/NED/TAMRA
|
ROX,TEXAS-RED
|
CY5
|
CY5.5
|
Customized
|
|
Excitation wavelength
|
300-800nm
|
|||||
|
Fluorescence detection wavelength
|
500-800nm
|
|||||
|
Module working temperature range
|
4-105℃ (resolution: 0.1℃)
|
|||||
|
Max. temperature rise rate
|
6℃/s
|
|||||
|
Max. temperature fall rate
|
5.5℃/s
|
|||||
|
Temperature control precision
|
±0.15℃
|
|||||
|
Temperature uniformity
|
≤±0.2℃
|
|||||
|
Hot lid temperature range
|
Setting temperature: 30-110℃ (adjustable, minimum: ambient temperature +5℃)
|
|||||
|
Temperature control mode
|
Block Mode and Tube Mode
|
|||||
|
Special function
|
Absolute quantitative automatic analysis, relative quantitative, SNP analysis, Melting curve analysis, 6 independent temperature
zones, HRM, Multi-channel crosstalk calibration, background correction, Auto Gain, customizable parameters, etc. |
|||||
|
Gradient control section
|
6-zone temperature control
|
|||||
|
Port method
|
USB port (connect to computer); Blueteeth port
|
|||||
|
Input power
|
220V-50Hz,1000VA
|
|||||
|
Outer dimension
|
490mm*290mm*391mm
|
|||||
|
Net weight
|
28KG
|
|||||
|
Safety protection and alarm
|
Over-temperature protection and alarm for hot lid;
|
|||||
|
Over-temperature protection for switch power
|
||||||
|
Safety certification
|
CE/EMC, in line with RoHS2 requirements
|
|||||
