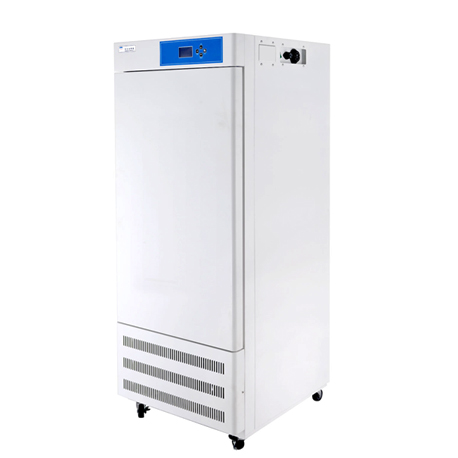

Biochemistry incubator cooling incubator HPX-L HPX-A HPX-B
Application range
The biochemistry incubator is applied to storage medium, serum, medicine and low temperature environmental test.
Features:
Inner Material: SUS304 Stainless steel
Parameters auto saving system and automatic start after power interruption
Independent external temperature protection device
Independent external temperature protection alarm module by SMS( not inculding the data flow card) which can be inquired by mobile APP
Test orifice φ 35mm
RS485 Communication serial port
RS485 to USB Transfer interface
Micro pinhole printer；Micro thermal printer
Technical data:
| Model | HPX-L-80 | HPX-L-150 | HPX-L-200 | HPX-L-250 | HPX-L-300 | HPX-L-400 |
| Temperature Control Range | -10℃-65℃ | |||||
| Temperature Uniformity | ±2℃ | |||||
| Temperature Fluctuation | ±0.5℃-±1℃ | |||||
| Inner Cyclic Mode | Breeze stirring method | |||||
| Temperature Display Accuracy | 0.1℃ | |||||
| Temperature Control Accuracy | ±0.1℃ | |||||
| Alarm Type | Over temperature alarm and Temperature probe damage alarm | |||||
| Temperature Controller | LCD display and P.I.D. temperature controller | |||||
| Work Room Dimension
WxDxH (cm) |
40x37x55 | 45x42x85 | 45x45x100 | 48x49x107 | 52x50x117 | 58x54x127 |
| Capacity(L) | 81 | 160 | 202 | 251 | 304 | 397 |
| Outline Dimension
WxDxH (cm) |
54x57x107 | 60x67x147 | 59x64x152 | 62x68x159 | 66x69x169 | 72x74x179 |
| Shelves | 2 | 3 | 3 | 3 | 3 | 3 |
| Rated Power (W) | 650 | 710 | 760 | 810 | 960 | 1280 |
| Power | 1Φ 220V 50Hz | |||||
| Model | HPX-A-150
HPX-B-150 |
HPX-A-250
HPX-B-250 |
HPX-A-300
HPX-B-300 |
HPX-A-400
HPX-B-400 |
| Temperature Control Range | HPX-A: -20℃-65℃; HPX-B: -40℃-65℃ | |||
| Temperature Uniformity | ±2℃ | |||
| Temperature Fluctuation | ±0.5℃-±1℃ | |||
| Inner Cyclic Mode | Breeze stirring method | |||
| Temperature Display Accuracy | 0.1℃ | |||
| Temperature Control Accuracy | ±0.1℃ | |||
| Alarm Type | Over temperature alarm and Temperature probe damage alarm | |||
| Temperature Controller | LCD display and P.I.D. temperature controller | |||
| Operation Mode | 24-process by program or value | |||
| Work Room Dimension
WxDxH (cm) |
42x42x93 | 47x46x118 | 49×47.5×128 | 56x60x120 |
| Capacity(L) | 164 | 255 | 298 | 403 |
| Outline Dimension
WxDxH (cm) |
61.5×72.5×157 | 66.5×76.5×182 | 68.5x78x192 | 75.5×90.5×184 |
| Shelves | 3 | 3 | 3 | 3 |
| Rated Power (W) | 2625 | 2625 | 2625 | 2625 |
| Power | 1Φ 220V 50Hz | |||
