Product Description

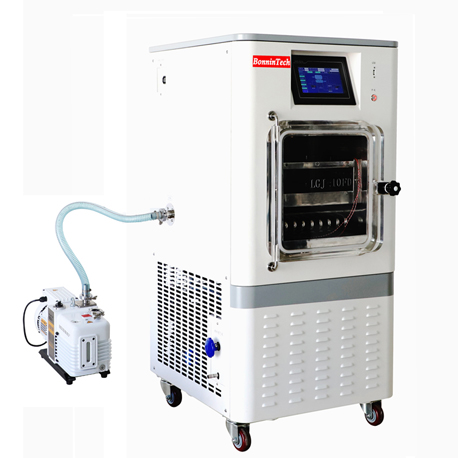

LGJ-10FD Electric Heating Experimental Freeze Dryer

This LGJ-10FD-Series-Electronic-Heating-Experimental-Freeze-Dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered.
Freezing and drying process of LGJ-10FD-Series-Electronic-Heating-Experimental-Freeze-Dryer are finished in the same place (patented product). It changes the cumbersome operation of the drying process in the past, prevents the contamination of materials, and realized dry sublimation automatically. The model is equipped with shelf heating and has programmable functions. It can memorize freeze-dried curves and comes with u-disc extraction function for users to observe the lyophilization process of materials.

Main features
1. It is our company’s patented product . Freezing and drying is finished in the same place. It is easy to operate,and have a good drying effect.
2. The ACRYLIC material is used for the drying chamber door. It is colorless, transparent, and the whole process of lyophilization can be observed.
3. Inflatable (drainage) valves use safety diaphragm valves, which can be connected to an inert gas source, and filled with inert gas after drying to extend material storage time.
4. Patented gas diversion technology, uniform ice catching in cold traps, and strong ice catching capability.
5. Internationally renowned brand compressors, high efficiency, long life, low noise.
6. Separator patented technology and partition temperature fuzzy control technology, the shelf temperature difference is small, the temperature control accuracy is high, and the drying effect is even.
7. The freeze-drying curve optimization control technology can control the cooling rate in the pre-freeze phase, and at the same time, it can control the sample heating rate and the current stage vacuum degree in the sublimation and analytical drying stages.
8. The powerful sensor calibration function ensures the long term accuracy of the measured value.
9. 7-inch true color industrial embedded touch screen + SH-HPSC-II modular controller, high control accuracy, stable and reliable performance.
10. The professionally designed FD-EMB control system can save hundreds of process recipes. Each recipe contains 50 temperature control zones to improve the process optimization rate.
11. Intelligent data recording system, real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve, export data can be viewed through the computer and print a variety of operations to facilitate process optimization and verification of drying effect.
12. Flexible manual + automatic control, manually used for groping the process, automatically used for mass production.
13. Real-time alarm display and historical alarm query function to facilitate fault diagnosis and equipment maintenance.
14. You can set the user level and password, and decentralized operation management.

Technical Data

Model LGJ-10FD-A (Electric heating) LGJ-10FD-B (Electric heating)

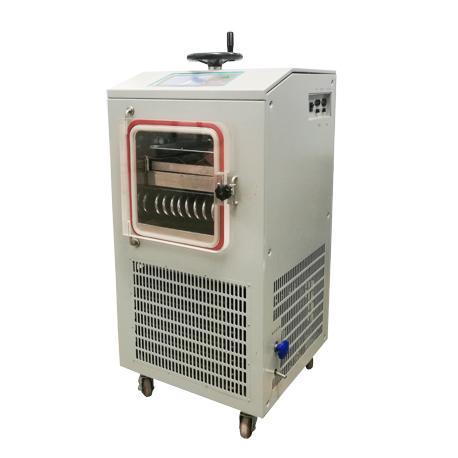

Specification Normal Stoppering
Drying chamber Shelf area 0.2 m2 0.1 m2
Shelf quantity 2 pcs 1pc
Shelf temp. range -50°C ~ 70°C
Shelf space height 70mm
Shelf dimension 400×270mm
∅22mm vials(piece) 440 220
∅16mm vials (piece) 868 434
∅12mmvials (piece) 1554 777
Tray dimensions 395×265mm 395×265mm
Tray quantity 2 1
Sample loaded capacity 2L 1L
Stoppering device No Yes
Material SS304 (chamber, shelves, trays)
Condenser Max temp. ≤-60°C (-80°C is optional)
Ice capture capacity 6Kg/24hs
Defrost Natural (Electric heating is optional)
Material SS304
Vacuum Vacuum pump Included
Vacuum rate 4L/S
Vacuum degree ≤5 Pa
Basic parameters Style of cooling Air-cooled
Dimension(L*W*H) 655×640×1200mm 655×640×1200mm
Weight 210kg 210kg
Control method PLC auto + manual
Installation power 2Kw
Voltage 220V/50Hz (can be change to 110V/60Hz)

Optional accessories and functions
·cold trap temperature -80℃
·eutectic point tester
·vacuum pump anti-returned oil device
·automatic backfill/drainage system
·cold trap electrical heat defrosting
·oil mist filter system
·vacuum adjustment system
LYO-MEGA Software System
·mobile phone APP monitoring system
·backfill filter
·external hanging bottle device
·imported vacuum pump
·non-standard customized
