10L 20L 30L 50L 80L 100L 200L Factory Price Jacket Double-layer Glass Reactor
Applications:
Double-layer glass reactor is a commonly used biochemical instrument. It is widely used in modern fine chemical, bio-pharmaceutical, scientific research and other industries. It can be concentrated, distilled, refluxed, separated and purified under constant speed, constant force and constant temperature. The reaction is the ideal instrument for teaching, experiment, pilot test and production.
Working principle:
The thermostatic (high temperature or low temperature) hot solution or coolant is injected through a double-layer reactor sandwich, and the contents of the reactor are heated or cooled at a constant temperature, and stirring can be provided. The material is reacted in the reaction kettle, and the evaporation and reflux of the reaction solution can be controlled. After the reaction is completed, the material can be discharged from the discharge port of the bottom of the kettle, and the operation is extremely convenient. It is an ideal equipment for modern chemical samples, petrochemicals, sample experiments, biopharmaceuticals and new materials.
Function and characteristics:
• The reactor body is made of borosilicate glass (GG-17), which has excellent physical and chemical properties, and the bottle is transparent and visible.
• The main body is made of stainless steel frame + aluminum alloy, which is beautiful and strong and corrosion resistant.
• Stainless steel stir bar is surrounded by PTFE, suitable for a variety of solvent agitation, pollution-free and corrosion-resistant.
• Explosion-proof motor is agitated, running smoothly, with large torque, no spark, and long life.
• PTFE components + mechanical seals, ceramic bearings, proprietary technology, good vacuum and long service life.
• This product explosion-proof frequency converter is the speed and temperature double digital display (can display the temperature inside the kettle). The speed can be set by the speed control knob, which is intuitive and convenient. It is also equipped with a temperature probe (PT100) inside the kettle.
• The overall structure is compact and reasonable, with a brake universal wheel, which can be moved as a whole and is easy to operate.

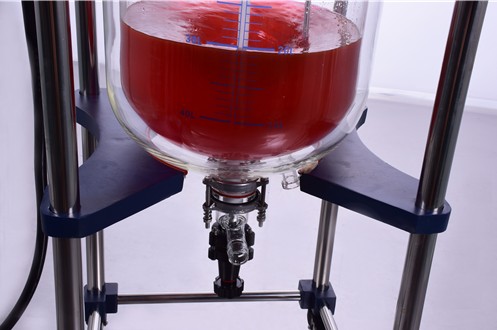

• There is no dead angle glass oblique discharge valve, which can effectively reduce the dead angle of mixing and convenient feeding.
• This product is equipped with a vacuum display function, which can select the best working vacuum for high boiling point materials.
Technical data
| Specification | S212-10L | S212-20L | S212-30L | S212-50L | S212-80L | S212-100L | |
| Dimensions | 48×48×192cm | 55×55×236cm | 55×55×236cm | 55×55×236cm | 63×63×260cm | 63×63×260cm | |
| Reactor capacity | 10L | 20L | 30L | 50L | 80L | 100L | |
| Glass reactor | Material | GG17 high borosilicate glass | |||||
| Thickness | 6-8mm | 6-8mm | 6-8mm | 6-8mm | 6-8mm | 6-8mm | |
| Jacket layer | 3.5L | 6.3L | 9L | 15L | 24L | 33L | |
| Width | 15mm | 15mmL | 15mm | 18mm | 20mm | 20mm | |
| Kettle lid opening port | Mixing port | 32#/50# | 32#/50# | 32#/50# | 32#/50# | 34#/60# | 34#/60# |
| Condensing port | 51# ball | 51# ball | 51# ball | 51#ball | 51# ball | 51# ball | |
| Funnel port | 40# | 40# | 40# | 40# | 40# | 40# | |
| Thermometer | 24# | 24# | 24# | 29# | 29# | 29# | |
| Feeding port | Flange port:φ 80mm | ||||||
| Air outlet port | 34# | ||||||
| Kettle lid size | Inner: 210mm outer: 265mm | Inner: 300mm outer: 340mm | |||||
| Stirring motor
|
Configuration: 180W inverter explosion | proof motor Configuration: 370W inverter explosion | |||||
| Explosion-proof grade: EXDII BT4 | |||||||
| Controller | Optional: Explosion-proof frequency control 0-800rpm
Display the temperature and speed of the material in the kettle |
||||||
| Constant pressure funnel | Standard: 2000ml configuration glass float flowmeter: 0.5-10L/min | ||||||
| Stir | Seal | Graphite/ceramic anti-corrosion mechanical seal combined with PTFE component seal, anti-corrosion and wear-resistant, ensuring vacuum | |||||
| Paddle | Standard: PTFE-type stirring slurry + three-blade propulsion | ||||||
| Discharge valve | Valve | Standard: new PTFE top glass valve | |||||
| Spacing | Discharge port distance from the ground:400mm | Discharge distance from the ground: 450mm | |||||
| Caliber | Inner: 30mm | ||||||
| Condensation reflux | Condenser | Standard: Serpentine condenser
Condensation area: 0.2-1M2 can be configured according to the boiling point of the reactor material and the amount of evaporation |
|||||
| Collection bottle | 2-5L Can be increased according to demands | ||||||
| Reflux head | 1000ml | ||||||
| Temperature/pressure | -120~250℃ / Use pressure: atmospheric or negative pressure -0.098mpa | ||||||
| Pressure gauge | Yes | Yes | Yes | Yes | Yes | Yes | |
Equipment configuration
| Item | Quantity |
| Double layer reactor body | 1 |
| Six opening kettle lid | 1 |
| Discharge valve | 1 |
| SUS304 stainless steel frame | 1 |
| 180W explosion-proof mixing motor | 1 |
| Explosion-proof inverter | 1 |
| Ceramic mechanical seal device | 1 |
| Explosion-proof digital display vacuum gauge | 1 |
| Stainless steel PTFE paddle | 1 |
| Condenser | 1 |
| Reflux head | 1 |
| Constant pressure funnel | 1 |
| Collection bottle | 1 |
| Feeding port PTFE sealing cap | 1 |
| Exhaust valve | 1 |
| Glass ring and fixing fixture | 1 |
