Product Description

Features

The instrument is mainly composed of an infrared emitter consisting of a detection mechanism, a single chip control data processing system, a detection system driving device, a liquid crystal display, a built-in thermal printing and a power adapter. With power-off protection function, when the power is suddenly cut off, the completed test result is automatically saved; the instrument is equipped with a built-in thermal printer with automatic and manual print selection function; the instrument has RS-232 serial interface, which can communicate with external computer system. The instrument can store test results of not less than 150 samples, including sample number (serial number), blood sedimentation value and dynamic curve;

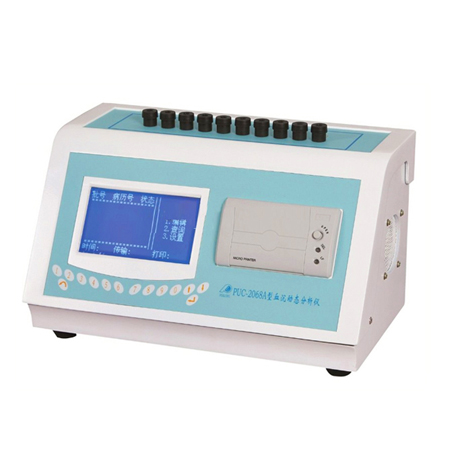

Specification of PUC-2068A Blood Erythrocyte Analyzer

Detection range: 0-120 mm / h ;
Number of samples tested: up to 10 samples can be detected simultaneously;
Maximum detection speed: 20 samples / hour;
Sample size: 1.6ml anticoagulated whole blood or 2.0ml anticoagulated whole blood;
Loading tolerance range: 50mm-64mm;
Report accuracy: 1mm (Wei’s method result);
Detection time: 30 minutes is equivalent to 1 hour of Wei’s method, 60 minutes is equivalent to 2 hours of Wei’s method;
Result storage: test results of not less than 150 samples;
Display: 128*240 dot matrix LCD screen;
ESR tube: Φ8.3*120mm erythrocyte tube (vacuum or ordinary) registered by the relevant drug regulatory department of the state.

Specification of PUC-2068B Blood Erythrocyte Analyzer
Detection range: 0-120 mm / h;
Number of samples tested: up to 20 samples can be detected simultaneously;
Maximum detection speed: 40 samples / hour;
Sample size: 1.6ml anticoagulated whole blood or 2.0ml anticoagulated whole blood;
Loading error range: 50mm-64mm
Report accuracy: 1mm (Wei’s method result);
Result storage: test results of not less than 150 samples;
Display: 128*240 dot matrix LCD screen;
Detection time: 30 minutes is equivalent to 1 hour of Wei’s method, 60 minutes is equivalent to 2 hours of Wei’s method;
It is allowed to input the red bubble specific volume (HCT) value and automatically calculate the K value of the hemorrhage equation;
ESR tube: Φ8.3*120mm erythrocyte tube (vacuum or ordinary) registered by the relevant drug regulatory department of the state.
