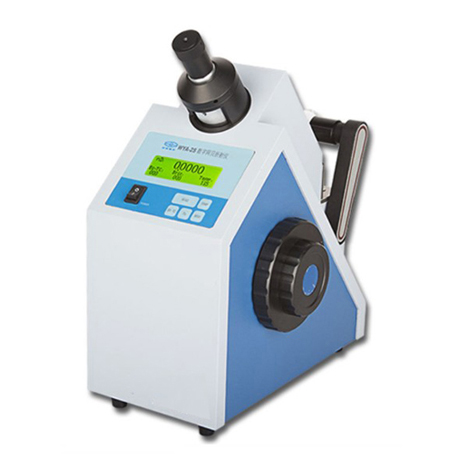

WYA-2S ABBE Digital Refractometer
Application
Determination of the refractive index nD of liquid or solid and the percentage of dry solids in the aqueous solution of sugar, ie Brix, using visual aiming, backlit liquid crystal display, temperature correction for determining the hammering time, and hard glass for the prism. Not easy to wear. With a standard print interface, you can print out the output data directly.
Characteristics
Measurement of refractive index nD of transparent or translucent liquid and solid substances;
Measurement of the Brix of sugar solution;
Visual aim and LCD display;
Automatic correction of the effect of temperature on the Brix;
Prism made of hard glass;
RS232
Technical Data
| Measurement range: | Refractive index nD: 1.30000-1.70000 |
| Brix (BX-TC): 0-100% | |
| Accuracy: | Refractive index nD: ±0.0002 |
| Dissolved solids Brix: ±0.1% | |
| Temperature Range (Min. 0.1C) : | 0-50℃ |
| Correcting range of Brix versus temperature: | 15-45℃ |
| Usage temperature range: | room temperature – 35℃ |
| Weight (Gross): | 12 kg |
| Overall Dimensions: | 370mm 240mm 470mm |
