Product Description

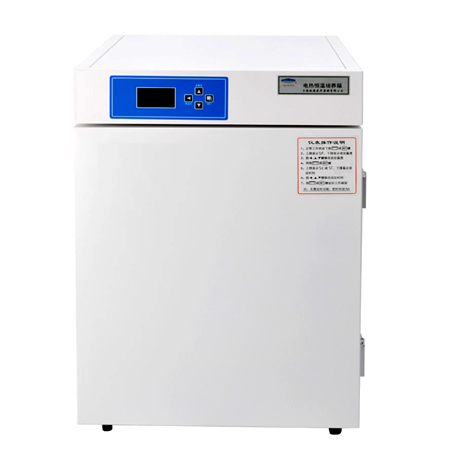

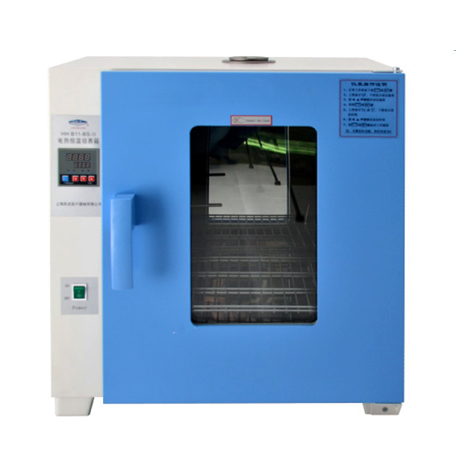

Thermostatic Heating Incubator

Scope of Application:

This incubator, also known as electrothermal thermostatic cell (mildew), is applied in medical institutions, pharmaceutical industry, biochemistry, industrial production and agricultural science for bacterial incubation, breeding, fermentation and other thermostatic experiment.



Structure Characteristics:

  • Outer Shell Material: Cold-rolled steel sheet surface spray

Inner Material: SUS304 Stainless steel

  • Glass inner Door and no outer door observation window for HDPF

Outer door observation window and no glass inner door for HDPN-II

  • Microprocessor PID temperature control, accurate and reliable

Timing range: 0-9999min

Parameters auto saving system and automatic start after power interruption

  • Inner round cornered design, convenient to clean
  • Shelves adjusted easily and flexiblely
  • Optional device:

Independent external temperature protection device

Independent external temperature protection alarm module by SMS( not inculding the data flow card) which can be inquired by mobile APP

Test orifice φ 35mm

RS485 communication serial port for HDPF

RS485 to USB Transfer interface for HDPF

Micro pinhole printer or micro thermal printer for HDPF



Model Specification:

Model HDPN-II-55 HDPN-II-88 HDPN-II-150 HDPN-II-256 HDPF-20 HDPF-55 HDPF-88 HDPF-150 HDPF-256
Temperature Control Range Room temperature +5℃-60℃
Temperature Uniformity ≤±1℃ ≤±0.5℃
Temperature Fluctuation ≤±0.5℃ ≤±0.3℃
Heatin Mode Bottom heating Multi-dide heating
Inner Cyclic Mode Natural Convection Breeze stirring method
Alarm Type Over temperature alarm and Temperature probe damage alarm
Temperature Controller LED display and P.I.D. controller LCD display and P.I.D. controller
Work Room Dimension

WxDxH (cm)

36*36*42 42*42*50 50*50*60 60*60*71 26*26*30 35*35*40 41*40.5*51 50.5*45.5*70 60*60*75
Capacity(L) 54 88 150 255 20 49 84 160 270
Outline Dimension

WxDxH (cm)

61*51*67 67*57*77 75*65*89 85*75*100 36*36*58 50*46*72 57*59*85 67*64*103 77*79*108
Shelves 2 2 3 3 2 2 2 3 3
Rated Power (W) 300 400 600 700 120 437 502 580 688
Power 1Φ 220V 50Hz
