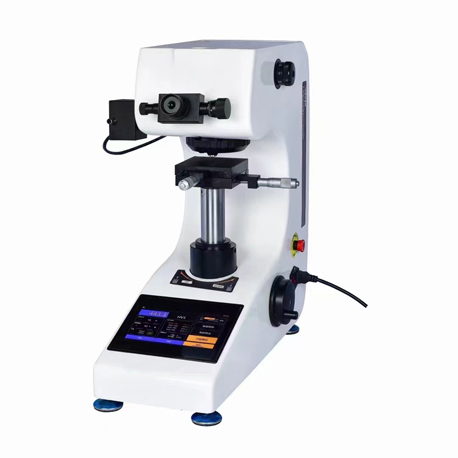

HVST-1000 Touch screen digital display micro hardness tester is a new generation of multifunctional touch screen micro hardness tester developed by our company. The hardness tester is novel in shape, has good reliability, operability and repeatability, and is an ideal product for testing micro hardness. The machine uses C language programming, high-magnification optical measurement system and optical dual-channel structure, new technologies such as optoelectronics, photocouple sensing, etc., in addition to meeting the basic Vickers hardness test requirements, the upgraded digital display micrometer eyepiece can directly Read the measured length to obtain the measured value quickly and accurately. The upgraded control operating system adopts a 7-inch LCD touch screen, which can provide more measurement data.

Main functions and features:
1. The optical system designed by optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;
2. The 7-inch LCD touch screen can directly display the hardness value, conversion hardness, test method, test force, brightness, dwell time, measurement times, statistical data, upper and lower limit measurement range, test time and other test procedures are intuitive and clear;
3. The system comes with a calibration function, which can manually adjust the input error calibration instrument;
4. The adjustable range of optical system brightness: 0-100;
5. It can store up to 100 sets of test data, and display the latest 5 sets of test data on the main interface;
6. The test force unit can be manually selected for mutual conversion, the conversion unit is: (Kgf, N)
7. Simultaneous display: maximum value, minimum value, average value, maximum error, sample difference;
8. The main interface can display 4 conversion scales at the same time, and can switch between national standards, American standards and international standards. A total of 18 measurement scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK , HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;
9. Both objective lenses can directly measure the hardness,
10. With diagonal length memory function, the diagonal length will be automatically memorized after shutting down, and it will be measured directly after turning on, without the need for secondary reset.
11. The upper and lower limit measurement range can be set and displayed on the main measurement interface;
12. The measuring scale can be converted into HK Knoop hardness;
13. The operating system can be converted between Chinese and English;
14. Optional built-in printer, test data can also be output to U disk via USB for storage and analysis;
15. The HVST-1000 model can directly confirm the hardness value by measuring the actual length;
16. The cast aluminum shell has a stable and non-deformed structure in one-time molding, and the pure white car paint is of high grade and has strong scratch resistance. It is still bright as new after years of use;
17. Our company has the ability of self-developed design, production and processing, and our machines provide parts replacement and maintenance upgrade services for life;

Main purpose and scope of application:
1. Steel, non-ferrous metals, metal foil, cemented carbide, metal sheet, microstructure
2. Carburizing, nitriding and decarburizing layer, surface hardening layer, electroplating layer, coating
3. Glass, wafer

Main technical datas:

Standard configuration:
