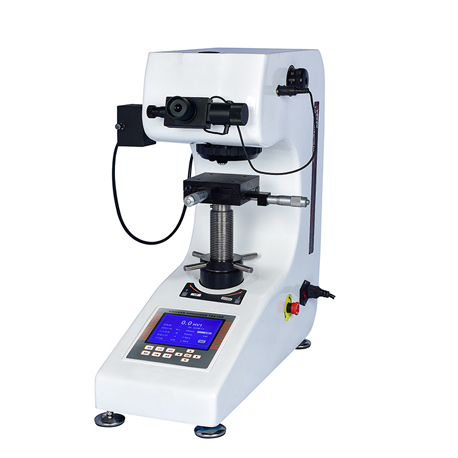

HVS-1000Z digital display automatic turret type microhardness tester can meet the basic Vickers hardness tester test requirements. The upgraded digital display micrometer eyepiece can directly read the measurement length, so as to quickly and accurately obtain the measured value. The upgraded turret
HVS-1000Z digital display automatic turret type microhardness tester can meet the basic Vickers hardness tester test requirements. The upgraded digital display micrometer eyepiece can directly read the measurement length, so as to quickly and accurately obtain the measured value. The upgraded turret The eyepiece and the indenter can be automatically switched to avoid damage to the instrument caused by manual error, and at the same time improve efficiency. The large LCD screen is convenient for observation, and the test conditions and test process are intuitive and clear.
Main functions and features:
1. The optical system designed by optical engineers not only has clear images, but also can be used as a simple microscope, with adjustable brightness, comfortable vision, and not easy to fatigue after long-term operation;
2. The large LCD screen of the industrial display screen can display the test method, test force, measured indentation length, hardness value, test force holding time, the number of measurements and can enter the year, month, date, test results and data processing, etc.;
3. The cast aluminum shell is formed at one time, the structure is stable and does not deform, the pure white car paint is of high grade, the scratch resistance is strong, and it is still bright as new after years of use;
4. Our company has the capability of R&D, design, production and processing by ourselves, and the machine provides parts replacement and maintenance upgrade services for life;
5. HVS-1000Z model can be realistic: measuring length directly confirms the hardness value.
6. The HVS-1000Z model can realize: the position switch of observation-test-measurement is completed by automatic turret.
Main purpose and scope of application:
1. Steel, non-ferrous metals, metal foil, cemented carbide, metal sheet, microstructure
2. Carburizing, nitriding and decarburizing layer, surface hardening layer, electroplating layer, coating
3. Glass, wafers, ceramic materials
Remarks: The side swing lifting system is optional to make the lifting system more stable.
Optional built-in printer, one-key printing of measurement data, or upload to computer.
Optional hardness tester measurement software to eliminate human error, computer operation, improve efficiency
Main Technical Datas:
| Parameter name | Parameter data |
| Micro hardness scale | HV0.01,HV0.025,HV0.05,HV0.1,HV0.2,HV0.3,HV0.5,HV1 |
| Display | Holding time (seconds), hardness value |
| Test force (gf) | 10,25,50,100,200,300,500,1000 |
| Loading control | Automatic (load/hold/uninstall) |
| Test force retention time (s) | 5 ～ 60 |
| Test force selection | External selector knob, test force is automatically displayed on the LCD screen |
| Objective magnification | 10×, 40× |
| Optical channel | Dual light channels (eyepieces and CCD camera channels) |
| Optical system | 1.Automatic digital encoder; 2.The total magnification (μm): 100 × (observation), 400 × (measurement); 3.Measuring range (μm): 200; 4.Resolution (μm): 0.01 |
| Hardness measurement range | (5-3000) HV |
| XY test platform | Size (mm): 100×100 Travel range (mm): 25×25 Minimum reading (mm): 0.01 |
| Maximum height of specimen (mm) | 110 |
| Maximum width of specimen (mm) | 85 (distance from the center line of the indenter to the wall) |
| Data output | Reserve built-in mini printer interface (RS232 serial interface), optional installation |
| Voltage | AC220V/50HZ |
| Weight (kg) | 35 |
| Dimensions | (540×200×530)mm |
Standard configuration:
| 1.Host ( Micro Vickers indenter x1, 10x objective x1, 40x objective x1) | 2.Test platform, weight, microscope accessory box; |
| 3.Weights x6 | 4.Weight bar x1 |
| 5.Cross table x1 | 6.Sheet clamping table x1 |
| 7.Flat mouth clamping table x1 | 8.Filament holding table x1 |
| 9.Level meter x1 | 10.Screwdriver x2 |
| 11.Horizontal adjustment screws x4 | 12.External power cord x1 |
| 13.10× Digital Micrometer Eyepieces x1 | 14.Micro Vickers hardness block x2 (HV1, HV0.2 x1 for each ) |
| 15.Fuses (1 A) x2 | 16.Product certification x1 |
| 17.Product Instruction Manual x1 | 18.Dust cover x1 |
