Product Description

High Temperature Rotary Brinell Viscometer for measuring viscosity of paraffin, hot melt adhesive, asphalt, polymer and other fluids.

The high temperature rotary viscometer can measure the viscosity of solid materials at room temperature, which become fluid after being heated at high temperature, such as hot melt adhesive, asphalt, paraffin wax, polyethylene wax and other high temperature molten materials. With the advantages of accurate, fast, intuitive and simple measurement, the instrument is recommended by the adhesive industry standard compilation and selected by customers in related industries.

The difficulty in measuring the viscosity of the high-temperature fluid to be measured after melting is that during the high temperature control, accurate temperature stability must be maintained continuously, so as to ensure that the measured experimental data are meaningful and the test results between samples are consistent.

The specially designed heating furnace can solve this problem and provide customers with a stable and accurate sample temperature testing environment. With the inherent high precision of the viscometer, the measured results are not only accurate, but also have good linearity.



Features:

  1. The temperature fluctuation is small.
  2. The sample size is small, and the thermal insulation of the sample chamber is good, which can effectively reduce the phenomenon of uneven sample temperature.
  3. The rotating rotor plays a stirring role, ensuring that the temperature gradient difference is very small.
  4. The test process steps are simple and clear.
  5. After users are familiar with the machine, they can easily get data with good reproducibility without too many skills.



Technical parameters

Model LV-SSR-H NDJ-1C / RV-SSR-H NDJ-1H / HA-SSR-H
Test Range(cP) 3—1.6M 50—2M 100—4M
Rotation Rate (RPM/min) 0.3/0.6/1.5/3/6/10/12/15/20/

25/30/40/50/60/70/80/90/100

0.5/1/2/2.5/4/5/10/15/20/25/30/40/

50/60/70/80/90/100

Rotors 18#, 25#, 31#, 34# 21#, 27#, 28#, 29#
Viscosity Value Resolution 0.01cP
 Test sample volume 11—16mL (According to different Rotors)
Display Information Viscosity, temperature, torque%, rotation rate, Rotor No., measurement time
Test Accuracy ≤±2%(Newtonian fluid ,FS)
Repeatability ±0.5%
Stop Mode Manual/automatic (timing measurement)
Control temperature range RT+10°C—250°C
Temperature accuracy 0.1°C
Overall Dimensions Viscometer:300*300*450 mm

Temperature control components:280*200*80mm  (L*W *H)

Net Weight 8kg
Power supply Viscometer:input AC100V to 230V, output: DC DC12V 2A

Temperature control components:AC220V or AC110V  3A

Power 340W

Viscosity unit conversion: 1Pa.s=1000mPa.s, 1P=100mPa.s, 1mPa.s=1cP, M=1,000,000

FR=Full Scale ; RT=Room Temperature

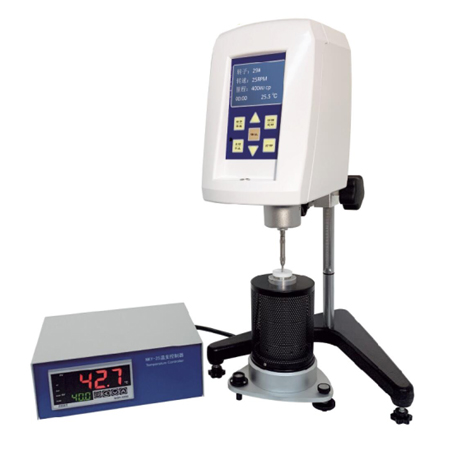

High Temperature Rotary Brinell Viscometer Machine
