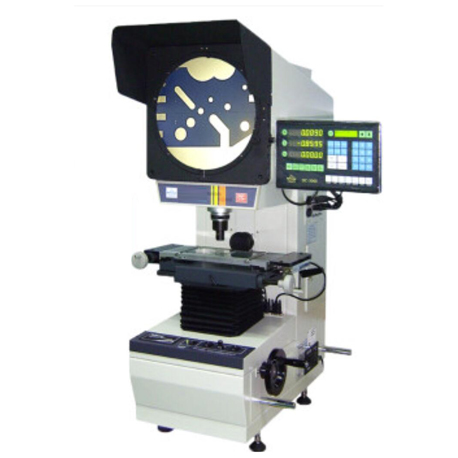

CPJ series Digital Profile Projector Optical Measuring Machine is a light, mechanical and electrical integration of precision measuring instruments of colleges and universities. Vertical projector image of the workpiece can be all-positive as well as inverted, measurement is simple and intuitive, high efficiency. Optical quality instruments, the objective into a clear, magnification accurate. Under the illumination of transmitted light, the error of profile measurement is less than 0.08%. It is widely used in machinery, instrumentation, electronics, light industry and other institutions, research institutes, metrological verification department. The instrument can efficiently detect the contour shape and surface shape of complex shapes of various shapes, such as samples, stampings, cams, threads, gears and forming mills.

Usages:

1. Profile projector is mainly used for the measurement of the mechanical parts of the length,
angle, contour and surface shape.
2. It is widely used in meter, electron, aerospace machinery, light industry, college, research institute and
measurement-inspecting department.
3. This instrument can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.
