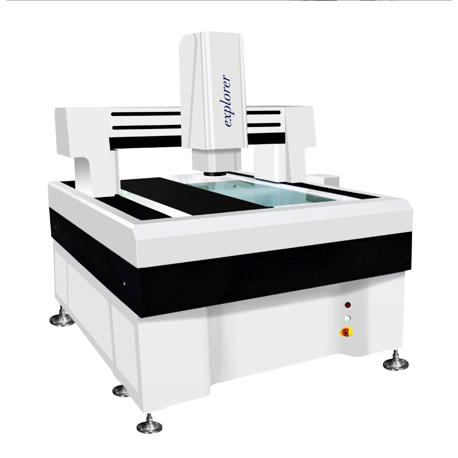

3D Large dragon Video Measuring System Machine3D Large dragon Video Measuring System Machine

CNC-5040AD 3D Large dragon Video Measuring Machine

CNC-5040AD Explorer Four-axis 3D Large dragon Video Measuring Machine using double closed-loop motion control, motor in high-speed movement with precise positioning performance. CNC measurement software to achieve rapid detection of large quantities of work pieces.

Product Description

CNC-5040AD Explorer Four-axis 3D Large dragon Video Measuring Machine

Features:

1. Double closed-loop motion control, motor in high-speed movement with precise positioning performance.

2. Using the embedded modules developed to control motor, increasing motor speed accordingly, but also to simplify the instrument and the PC-interface, PC machines and instruments through the USB line and S-Video cable.

3. It is coupled with the company’s self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.

4. Surface light source formed by an independent group of 24, each group are constant current source driver and 200-step continuous variable.

5. With marble platform, high stability.

Technical parameters:

Model CNC-5040AD
Glass table Size
530*430
Metal table Size 700*600
Working travel X.Y 500*400
Z-axis travel lift(mm) 200 focus
X.Y.Z-axis digital display resolution 0.5um
X.Y axis value error ≤(3+L/200)L is the measured length,unit mm)
Weight(kg) 720
Dimession 900*1050*1650
Motor Three axis velocity 100mm/s
Three axis positioning accuracy 0.001mm
Image system Camare Sony color 1/3″CCD camera
Zoom  coaxial optical zoom lens with a zoom lens (2 select one)
Zoom magnification 0.7-4.5X
Video total magnification 30-230X
Objector field 11.1-1.7mm
Power AC220V/AC110V
Power consumption 100W
Insreument accessories 1Xtube(option) 0.5Xtube(option) Working distance
Zoom lens 0.7-4.5X 0.7-4.5X
Add lens Video magnification Material side field(mm) Video magnification Material side field(mm)
0.5X option 11.8X-74X 22-3.4 5.9X-37X 44-6.8 175
Standard 23.5X-148X 11.1-1.7X 11.8X-74X 22-3.4 92
2Xoption 47X-296X 5.5-0.9 23.5X-148X 11.1-1.7 36



Advantages:

  1. It can measure point, line, circle, arc and oval, rectangular and improve the accuracy with the multi-point positioning function.
  2. It has many features, such as combination of measurements, center structure and the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.
  3. It is coupled with the company’s self-developed CNC measurement software to achieve rapid detection of large quantities of work pieces at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
  4. Coordinate translation and coordinates straighten out is to make measurement more convenient and efficient and improve measurement efficiency.
  5. Macros can measure the same parts faster and more convenient volume and improve the measurement efficiency.
  6. Measurement data directly input into AutoCAD and become a full work circle; the data also can be entered in Excel and Word to conduct statistical analysis.
  7. Record user program, editing and execute command.

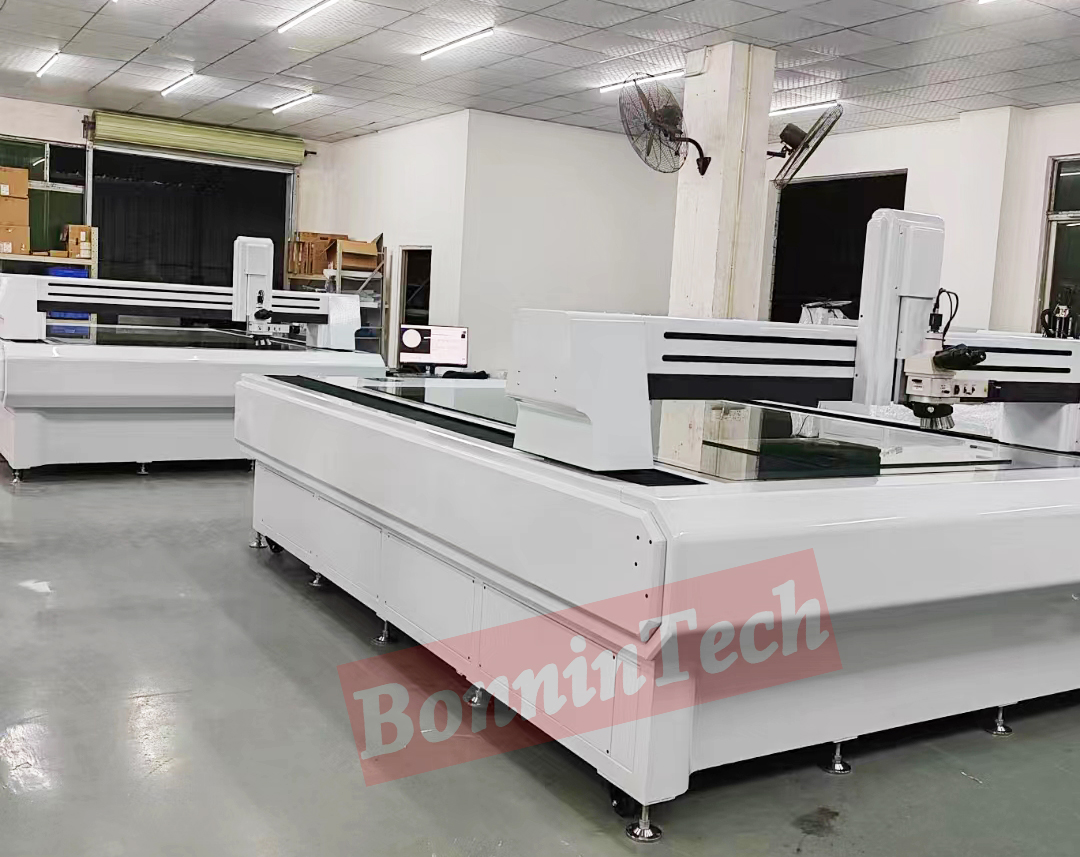

CNC-5040AD Explorer Four-axis 3D Large dragon Video Measuring Machine
