HK-320 Flexo Ink Proofer is to imitate the working principle of the design and production of the proofing machine, monochrome proofing, a wide range of substrates for printing and packaging production, paper production enterprises, ink production enterprises and research institutions, and so on.

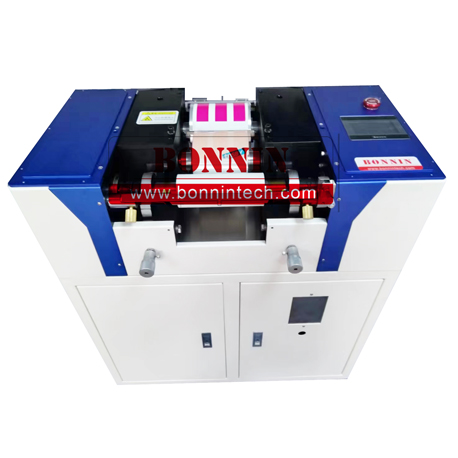

HK-320 Flexo Ink Proofer with UV dryer is to imitate the working principle of the design and production of the proofing machine, monochrome proofing, a wide range of substrates for printing and packaging production, paper production enterprises, ink production enterprises and research institutions, and so on.
Technical parameters:
1. Applicable objects: monochrome proofing (such as color matching, testing, etc.)
2. Input power: 220V, 50/60Hz
3.Power: 400 w
4. Ink: dropper ink
5. Proofing material thickness: 0.01-2mm (bendable material)
6. Proofing material size: 190x240mm
7. Printing area: 100x130mm
8. Plate area: 150X 150mm
9. Plate thickness: DUPONT: 1.14mm, Tessa (double-sided adhesive tape) :0.38mm
10. Plate roller and screen roller pressure: adjustable by 2mm soil, with scale to show the pressure 11.Plate roller and press pressure: can be adjusted by 2mm soil, there is scale to show the pressure 12.Printing speed adjustable: 0-80 m/min
13. Ceramic roller specifications :100x210mm
14. Number of ceramic roller lines: standard 600LPI (70-1200 lines can be customized).
15. Suitable for: flexographic water – based, UV ink, lithography, letterpress or UV ink
16. Suitable proofing materials: paper, plastic film, non-woven cloth, napkin, gold and silver card paper,etc
17. Dimensions (length x width x height) : 450x800x240mm
18. Instrument net weight: 110KG
19. UV fixing machine drying equipment optional
20. The instrument can be coated, solid color, dot pattern proofing
21. Blade pressure: pneumatic, pressure balance can be adjusted at both ends.The constant pressure design of the scraper is conducive to the repeatability of printing color and uniform standard.
